The Ubiquiti UniFi Mesh Access Point UAP-AC-M is a simultaneous, dual-band, 3×3 MIMO technology, 802.11ac dual-band wireless access point, capable of speeds of up to 1750 Mbps.

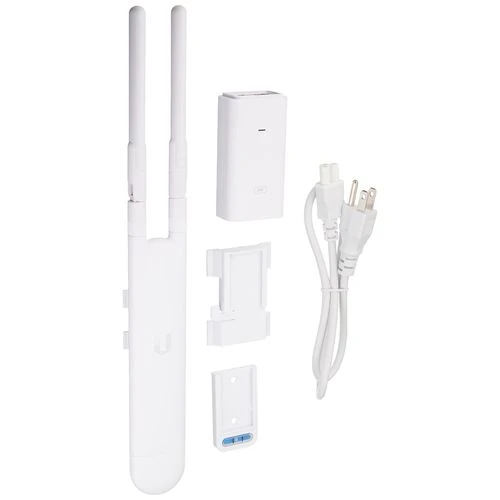

Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Access Point, part of the Ubiquiti UniFi Enterprise Wi-Fi Access Points. The UAP-AC-M is a high-performance, outdoor, 2×2 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping.
| Networking Interface | 2×2 WiFi dual band / Ethernet Gigabit |
| Ports | (1) 10/100/1000 Ethernet |
| Buttons | Reset |
| Antennas | 2 Dualband antennas |
| Wi-Fi Standards | 802.11a/b/g/n/ac |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter* |
| Maximum Power Consumption | 8.5W |
| Max TX Power | 20 dBm |
| BSSID | Up to Four per Radio |
